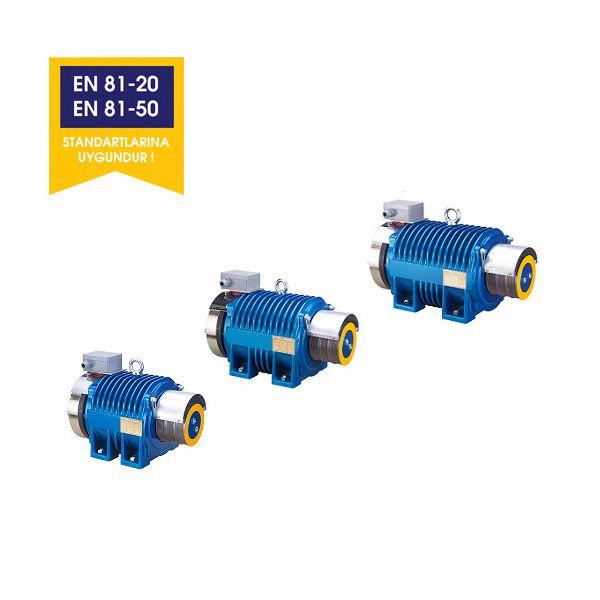

AKAR BELT SMT 140BC-10 SYNCHRONOUS MACHINE
Brand : AKAR
Product Code : ELVMT1398
Firmware Code : KAYIŞLI SMT 140BC-10
Category Title : Synchron Machine
Companies That You Can Get Offer About This ProductAll Sellers (1)
  • Product Information
  • Technicial Specifications
  • Product Comments
  • All Sellers
<p>AKAR - BELTSYS GEARING SYSTEM WITH BELT</p> <p>AKAR - BELTSYS Beltless Gearless System consists of SMT Series gearless drive motor, drive pulley, special certified belt, belt holders, belt life counter and pulley pulleys.</p> <p>AKAR - BELTSYS Beltless Gearless System (CE) system certified by Liftinstituut.</p> <p><br /> It can reach a cabin speed of 1.6 m / s in 2: 1 suspension systems.</p> <p><br /> Beltsys Gearless System Heidenhain brand absolute encoder is used.</p> <p> </p> <p>Advantages:</p> <p>»Smaller drive pulley diameter allows for higher rated load.<br /> »Polyurethane coated steel wires are protected from corrosion.<br /> »The life of the special certified belt is longer than the steel rope.<br /> »It consumes less energy than equivalent gearless systems.<br /> »Allows the selection of a lower power drive.<br /> »Provides a quiet cruise.<br /> »Provides high cruising comfort.</p> <p>AKAR Electromagnetic Brake:</p> <p>»EN 81-1 A3 Standard meets the requirements of 9.10-9.11 and 12.4.2.</p> <p>Brake Voltage: 198V DC<br /> Number of Poles: 16<br /> * The load currents (I) are calculated according to the determined well yield and 24 meters travel distance. (Well yield: 0.85)<br /> ** With balance chain<br /> - The number of belts may vary depending on the weight of the cab.<br /> <br /> *** Belt number 4 and 5 systems with side legs.<br /> # Belt with special certificate</p>
Suspensory Form:02:01
Engine Power [kW]:5.1
Max. Static Load (kg):2000
Cabin Speed [m/s]:1
Rope [Ad x mm]:3
Pulley Diameter [Ø]:160
Calibre Rope ( Ø ):10
Warranty Period:1 Year
